Slide Patio Door Styles
Narrow (2 ½") Stile Slide Patio
Does your contemporary building project demand the most visible glass possible? Choose a Lincoln slide door, constructed with Narrow 2 ½"stiles and rails, and achieve the contemporary appearance everyone is talking about. Slide doors are a key design element for tighter spaces as they are minimally invasive with open panels simply covering the fixed portion.
Our easy to operate sliding doors have ball-bearing rollers, a large selection of hardware finishes and are available in standard or made-to-fit sizes. All Lincoln sliding doors up to 8' tall are factory assembled, speeding up the installation process.
Lifestyle (3 3/8") Stile Slide Patio
Reach new heights with Lincoln's Lifestyle slide door option creating much needed design freedom for clients utilizing both slide doors and swing doors. The sleek appearance of our 3-3/8" stile is available in large openings up to 9 ft tall and matches the swing door family of products.
As the perfect fit for contemporary, modern farmhouse or traditional homes, slide doors are easy to use as there are many standard sizes ranging from 5 ft - 16 ft wide and up to 9 ft tall.
Wide Stile (4 13/16") Slide Patio
No room for a swinging door? Then compliment your home with an elegant Wide stile slide door from Lincoln. Wide stiles feature more wood than a traditional Narrow or Lifestyle slide door, becoming the perfect choice when using an alternate wood species.
Hardware finishes can be color coordinated with swing doors should your design require the space saving benefit of a slide door while also needing a swing system.
Slide Patio Corner
Features
- 4-9/16" jamb
- 1-3⁄4" thick panels
- 3⁄4" tempered insulating glass
- Interior wood glazing bead
- .125 pultruded resin coated Bronze fiberglass sill
- .080 thermally-broken dark bronze extruded aluminum sill
- .050 extruded aluminum clad on panels and frame. Wood units have primed panels on the exterior with cPVC brickmould.
- Integral screen channel
- "t-Rail" Guide System
Exterior Colors
Actual colors may vary from image on computer screen. Please see your Lincoln dealer for the latest available colors.
Aluminum Clad
All of our standard, feature and custom color options are painted to AAMA 2605 performance requirements. AAMA 2605 high performance paint is the preferred choice of designers, architects and educated consumers. Exceptional color retention and minimal chalking are leading characteristics of this premium paint finish.
Standard Colors - AAMA 2605
Our standard colors are the mainstay of the clad product line. The popularity of these eight time-tested shades is proven by repeat customer demand.
Coffee Bean
Hartford Green
Bronze
Black
Feature Colors - AAMA 2605
A selection of thirty-eight additional colors provides an opportunity to achieve that distinctive look. Our feature colors offer a wide range of shades that will take your project from ordinary to extraordinary!
Winter White
Linen
Chamois
Sandstone
Sierra Tan
Hampton Brown
Pueblo Tan
Driftwood
Chocolate Malt
Toffee
Cocoa
Spice
Pinecone
Crimson
Santa Fe
Brick Red
Rosewood
Chili Powder
Berry Red
Merlot
Bay Leaf
Patina Green
Fairway
Thistle
Wild Ivy
Sagebrush
Sea Foam
Caribbean
Glacier
Military Blue
Ink
Night Sky
Steel Blue
Dove Grey
Battleship Grey
Charcoal
Stone Grey
Slate
Custom Colors - AAMA 2605
We also offer a full color palette of custom colors. The paint laboratories will color match to your color sample and supply a paint swatch for your approval. Go beyond extraordinary with the limitless choice of custom colors.
Spray-On Anodized Colors - AAMA 2604
Our seven anodized colors offer you the look of an anodized finish with the benefits of a painted product. This AAMA 2604 certified paint provides field repair ability, color consistency and mortar and chemical resistance.
Clear
Champagne
Light Bronze
Medium Bronze
Primed Wood
Wood & Cellular PVC
Wood with a white factory applied water-based acrylic latex primer and white, paintable cellular PVC sill and blindstop.
Primed Wood
Exterior Options
Aluminum Clad
Aluminum clad is definitely the most popular exterior choice from Lincoln, offering color flexibility and structural strength while providing a homeowner with a low maintenance exterior. Heavy .050 extruded aluminum frames and sash protect homes from the outdoors and add structural integrity for maximum functionality. Our Aluminum Clad product includes a full line of windows and patio doors plus a multitude of options. Beauty, durability, variety and performance are all brought to you by the Distinction Collection.
Why Choose Aluminum Clad?
Lincoln's Aluminum Clad product is all about the high quality painted colors and the ultra-dependable aluminum material where it is applied. Our standard paint finish specification is AAMA 2605. Considerations for quality paint include: chemical resistance, corrosion resistance, abrasion resistance, salt water spray resistance, weathering, color uniformity, and specular gloss.
Feature Highlights:
- .050 extruded aluminum on sash and frame
- AAMA 2605 paint finish
- Injected frame corners with corner keys for added stability
)
)
)
Trim
Add that finishing touch to the exterior of your windows and patio doors by trimming them with the many brickmould and casings offered by Lincoln. Along with richening the aesthetics of your home, these factory-applied trims reduce the installation labor and hassle.
2" Brickmould
4" Brickmould
4" Flat Casing
1/4" Sill Nosing
7/8" Sill Nosing
Bull Nosing
1" Box Sill Nosing
Nailing Flange
A factory applied rigid aluminum nailing flange and color matched drip cap. This .050 extruded option features mitered corners with supplied gaskets.
Spread Mulls
Typical mulling is done with a tight unit to unit mull clip. Spread mulls add additional spacing between windows and patio doors. Popular rational for doing so would include: accommodating a special opening with standard size windows, to achieve a 'heavier' look and working around essential structural framing.
Spread mulls can be done both vertically and horizontally, open or filled, and are compatible with exterior trim options.
Panning Systems
These additional trims snap into the accessory groove which can add additional width and height to a window or patio door. This system will fill space from a window frame to the building thereby covering the framing material and nail fins. Incorporate an H-clip and create an adjustable panning used to join two units fairly far apart.
The panning system is a nice feature commonly used for remodeling when there are existing and varying openings.
Hybrid
Not available on Lift & Slide or Multi-Slide Doors
The best of both worlds! Combine a traditional window look with today's modern exterior options. Create your hybrid window package by picking a traditional wood trim/casing and then choose an aluminum clad sash or door panel. This unique blend of conventional window parts and popular accent trim best describes the Lincoln Hybrid.
Casings are non-rot cPVC and will take heat reflective and UV resistant paint well, allowing you to match our clad sash. For the more adventuresome, you can create a color contrast between the sash and frame. Historical appearances will charm an architectural eye and our durable low-maintenance qualities will satisfy an owners concern for longevity.
Why Choose Hybrid?
Lincoln's Hybrid is the evolution of our industries' request for versatility. Paintable solid-core cellular PVC profiled moldings install like wood and are perfect for high moisture areas. Water is not absorbed into these exterior frame parts making them rot, mold and insect resistant while special UV inhibitors allow the PVC to weather well. By adding an aluminum clad sash, we created the perfect architecturally-pleasing window. This hybrid design joins our unique frame casings and sill nosing with the ultra-low maintenance sash style.
Feature Highlights:
- .050 extruded aluminum on sash
- cPVC sill nosing and brickmould
- Paintable frame
)
)
)
Trim - Cellular PVC
Add that finishing touch to the exterior of your windows and patio doors by trimming them with the many brickmould and casings offered by Lincoln. Along with richening the aesthetics of your home, these factory-applied trims reduce the installation labor and hassle.
2" Brickmould
Williamsburg
Backband
Flat Casing
Any dimension up to 8"
1" Sill Nosing
2" Casement Sill Nosing
2" Double Hung Sill Nosing
Primed Wood
Not available on Lift & Slide or Multi-Slide Doors
This time-honored window design captures the original depth and beauty of Lincoln products. Our Primed products are architect friendly and designed for new construction or historical renovation projects.
High risk rot-prone components are substituted with cPVC parts ready for a high quality heat reflective and UV resistant exterior paint color choice.
From a traditionalist point-of-view, Lincoln's stylish windows, patio doors and shapes are dimensionally accurate, historically desired and design friendly.
Why Choose Primed Wood?
Lincoln's Primed product is our most traditional appearing product from the exterior. Enjoy the freedom and flexibility of painting our primed wood sash, solid-core PVC brickmold and sill nosing. Water is not absorbed into these exterior frame parts making them rot, mold and insect resistant while special UV inhibitors allow the PVC to weather well. Nothing has more traditional appeal than brush strokes on primed sash. Lincoln sash feature historical 'mortise and tenon' joinery for strength and cosmetic appeal.
Feature Highlights:
- Primed pine sash
- cPVC sill nosing and brickmould
- Paintable exterior
)
)
)
Primed Wood Trim
Add that finishing touch to the exterior of your windows and patio doors by trimming them with the many brickmould and casings offered by Lincoln. Along with richening the aesthetics of your home, these factory-applied trims reduce the installation labor and hassle.
2" Brickmould
Williamsburg
Flat Casing>
Any dimension up to 8"
1" Sill Nosing
Natural Wood
Not available for Lift & Slide or Multi-Slide Doors
Nothing demonstrates class better than the warmth and beauty of all natural wood. Lincoln's Natural Wood clearly defines elegance and charm on both the exterior and interior of your home or business.
Wood is nature's exceptional natural insulator. Environmentally friendly wood is a very energy efficient window construction material and is a renewable resource.
Protect your investment by applying a quality stain and sealer on both window surfaces and enhance the appearance all while blending in with your natural landscape.
Why Choose Natural Wood?
Lincoln's Natural Wood product features three common wood species with intricate details on both the interior and exterior. Our popular mahogany wood, a tropical hardwood, is a rich reddish-brown color, which darkens over time. Mahogany has a generally straight grain and is usually free of voids and pockets. Douglas-fir wood, available in long fairly knot-free lengths, is typically used for structural applications making it a very sound window material. Pine is readily available in common cut-lengths, easy to process and is a relatively quick growing renewable resource.
Feature Highlights:
- High-grade natural wood sash and frame
- Exterior parts are dipped for protection from the elements
- Stainable wood parts
)
)
)
Natural Wood Trim
Add that finishing touch to the exterior of your windows and patio doors by trimming them with the many brickmould and casings offered by Lincoln. Along with richening the aesthetics of your home, these factory-applied trims reduce the installation labor and hassle.
2" Brickmould
Williamsburg
Flat Casing
Any dimension up to 8"
1" Sill Nosing
Interior Options
Wood Species
Nothing enhances the look and feel of a room more than the richness and beauty of wood. Our standard pine interior is fine for most applications, but if you are looking to really enhance the character of your project, we offer five additional wood species.
Alder
Cherry
Fir
Mahogany
Red Oak
White Oak
Pine
Wood Finishes
Natural Wood
Lincoln will leave your interior wood surface sanded smooth, ready for stain and sealer.
Primed
If you plan to paint the interior of your windows and patio doors, you can have them primed with a white factory applied water-based acrylic latex primer.
Pre-Finished
To take things a step further, we also offer a factory applied top-coat of paint. Pre-Finished white or black is intended to be your final coat of paint and reduce jobsite finishing costs.
Square Glazing Bead
With or without the new square Simulated Divided Lite (SDL) option, utilizing the new square glazing bead style is becoming increasingly popular in the architectural communities. Lincoln's sharper glazing bead profile was designed to flow naturally with the super straight lines featured in modern designs.
Jamb Extensions
When installing a window, increasing the depth of the window frame to accommodate the wall thickness is sometimes necessary. This can easily be accomplished with the use of jamb extensions available in all six wood species.
Mull Casings
This is an interior trim covering that hides the joinery between mulled window assemblies and is commonly used when purchasing an applied extension jamb. Mull casings are available to match our wood species.
Glass Options
Lincoln offers glazing options with thoughts of energy efficiency and creature comforts alike. Whether your home is in the Sunbelt consisting of long sunny summer days, hot muggy nights and high air conditioning bills or is in the heart of the Midwest with extended periods of below-zero temperatures and high heating bills, sit in your favorite chair, relax and let our manufacturing excellence guide you through our diverse IG offering.
Energy Efficient
Insulated Glass Construction
Our insulating glass (IG) is constructed with four major components. It's the quality of these components, sheet glass, desiccant material, sealants and spacers that set companies apart.
Let's consider the sheet glass. We exclusively utilize double-strength glass even on the smallest sizes. Some companies believe this should be an upgrade while we eliminated the thinner glass option many years ago.
Quality desiccant material is used to absorb moisture within the IG unit during assembly and the polyisobutylene sealant provides excellent adhesion to the glass with a low moisture vapor transmission rate for years of outstanding field performance.
Endur IG Spacer
- Stainless steel spacer.
- Desiccant material.
- "Polyisobutylene" primary seal.
- Specially formulated secondary seal.
Constructed with a single LoE coating, this glass option is perfect for climates where heat retention is welcome, solar heat gain is paramount and glass clarity is vital. LoE-180™ outperforms clear IG glazing with warmer inside glass temperatures and better UV protection.
Projects looking for passive solar glazing solutions including good U-Value performance in conjunction with higher Solar Heat Gain Coefficients experience positive benefits with LoE-180™.
LoĒ-180™
Features & Benefits
- Dual pane
- Double strength glass
- Two warm edge spacer options
- One layer of silver
- Good U-Factor
- Good indoor temperatures
- Good solar heat gain
- Passive solar solution
- Ideal for cooler climates
- High visibility
Safeguard your home from the elements by using this nearly invisible protection. Consisting of two microscopic layers of silver sealed in the airspace, this glass is a nice step-up from our standard offering.
Obtain an affordable balance of U-value, solar shading, visible light transmittance and UV protection by choosing LoĒ²-272®.
Solar energy rejected by LoE insulating glass
Room-side heat reflected back into room by LoE insulating glass
LoĒ²-272®
Features & Benefits
- Dual pane
- Double strength glass
- Two warm edge spacer options
- Two layers of silver
- Better U-Factor
- Better indoor temperatures
- Less condensation
- Lower heating bills
- Ideal for cooler climates
- High visibility
- Gas or air filled
Go to top
Our most ecologically aware combination of glass products designed for projects requiring extraordinary energy efficiencies.
As the ENERGY STAR® program ratchets up its requirements, our glass offering continues to provide consumers with an ability to comply. Lincoln's Dual Low-E2 is the next generation insulating glass package that tackles these stricter requirements by combining LoĒ²-272® with a roomside (LoĒ-i89™ is on surface #4) low-e coating. Don't worry, LoĒ-i89™ performs well without sacrificing glass clarity, doesn't require special cleaning and provides additional UV protection.
This energy efficient glass lowers U-Values and retains more of your costly heat inside for the Northern and North/Central zones. Assembling Dual Low-E2 with our foam spacer system further improves U-value performance.
Dual Low-E2
(LoĒ i89™/LoĒ²-272®)
Features & Benefits
- Dual pane
- Double strength glass
- Two warm edge spacer options
- >Best ENERGY STAR® U-Value
- Excellent glass clarity
- Best fading protection
- >Lower heating bills
- Best for frigid climates
- Gas or air filled
Go to top
Controlling solar heat gain just became easier with the unparalleled performance of LoĒ³-366™/Neat® glass technology. By adding a third layer of silver coating, LoĒ³-366™/Neat® effectively blocks solar gain and reflects heat more efficiently.
In addition to reducing heat gain, the goal with any high performance glazing is clarity. LoĒ³-366™/Neat® was produced to show a minimum of exterior "mirror" reflectance and does not require smoke-colored tints that can darken your home's interior.
Neat® glass refers to the coated exterior surface, the glass on outside of your home. The coatings consist of silicone dioxide and titanium dioxide which make glass smoother. Yes, rest assured that it won't wipe off. In fact, it is a permanent coating you won't be able to visually detect. Until you start cleaning your windows!!
LoE³-366™ has three-coats of silver that remain very clear so interior spaces don't seem shaded or tinted. This coating process out performs LoE² by keeping heat from penetrating the glass pack, passing through and collecting in the building.
LoĒ³-366™/Neat®
Features & Benefits
- Dual pane
- Double strength glass
- Two warm edge spacer options
- High visibility
- Three layers of silver
- Best fading protection
- Lower air conditioning bills
- Ideal for warmer climates
- Ideal for warmer climates
- Environmentally friendly– uses less energy
- Ideal for warmer climates
- Gas or air filled
Go to top
Lincoln's advanced glass technology is packed with high performance attributes, built-in strength and durable spacer options.
Recent revisions and enhancements to the ENERGY STAR® program concerning Solar Heat Gain Coefficients (SHGC) make this glazing option an obvious pick. Consider these other important benefits as well: easy jobsite cleanup with Preserve® Protective Film, less frequent and easier glass cleaning when utilizing Neat® coatings, save on heating costs with great U-Values and experience less fading via superior ultraviolet protection all with good Visual Transmittance characteristics.
Choose this energy efficient glass for our best and very low SHGC numbers. LoĒ³-366™ reflects the suns heat energy back outside for more interior comfort in warmer climates and will save you money with lower air conditioning bills during the summer months in the Southern, South Central and North Central ENERGY STAR® zones. Assembling Dual LoĒ³-366™ with our foam spacer system further improves U-value performance.
Dual Low-E3
(LoĒ i89™/LoĒ³-366™/Neat®)
Features & Benefits
- Dual pane
- Double strength glass
- Two warm edge spacer options
- Great ENERGY STAR® U-Value
- Excellent glass clarity
- Best fading protection
- Lower air conditioning bills
- Best for warmer climates
- Gas or air filled
Go to top
Argon Gas
For greater energy efficiency, argon is added to all LoE glass units, at no cost to the customer, with the exception of those units requiring capillary/breather tubes. These units include, but are not limited to, glass 12" and less in width or height and units shipped over high elevations. Lincoln does not guarantee that the initial argon fill rate will be maintained over the life of the product. Argon depletion may decrease energy efficiency. For more information, contact your local distributor or Lincoln Wood Products, Inc.
LoĒ-180™, LoĒ²-272®, LoĒ-i89™, LoĒ³-366™, Neat® and Preserve® are trademarks of Cardinal IG.
...
Low Maintenance
The ultimate choice in glass plus the benefits of two low maintenance features that will leave your windows clean and protected.
Do you want the perfect ending to our glazing story? Be truthful. Be inspired. Be Unique. By definition, our combination of LoĒ³-366™/Neat® and Preserve® really is the best performing glass in the window industry. Pick Neat® and Preserve® to simplify your lifestyle during construction and the years to come. Welcome to shorter jobsite punch lists, less trips with the extension ladder and being the envy of your neighborhood. Welcome to Premium Performance glass from Lincoln.
A silicon dioxide layer that makes the glass surface ultra smooth and superhydrophilic so water sheets off leaving fewer spots. Add to that a titanium dioxide layer that reacts with the sun's UV rays causing organic material on the glass to decompose - no manual activation required. Since the sun and the rain do most of the work, windows stay clean longer and are easier to clean when needed.
Super-thin coating applied to the exterior glass surface creates smoother glass that stays cleaner longer and is easier to clean.
Rain water disperses quickly with a sheeting affect greatly reducing stubborn water spotting because water evaporates faster.
Patented double-sputtering process results in a very durable, permanent and affordable outside coating.
Neat® coating chemically react's with the sun's UV rays decomposing organic materials that are rinsed away with rain water.
Ordinary Glass (Hydrphhobic)
Water beads higher on rough surface of ordinary glass, causing more spots and greater cleaning needs.
Neat® LoE Glass (superhydrophobic)
The smooth surface disperses water evenly, removing dirt more quickly and reducing water spots.
Neat Glass
Features & Benefits
- Cleaner windows
- Invisable, permanent coating
- Reduction in water spots
- No manual activation
- Easier construction cleanup
A low density polyethylene adhesive that protects the glass during shipping and construction offering savings of time and money during cleanup. Since it's clear, it allows in natural light during the building process. Once construction is complete it simply peels off, labels and all. Also, because it contains no harmful chemicals, it can be disposed of with other waste materials
Preserve®
Features & Benefits
- Reduction in glass damage
- Easier construction cleanup
- Inside and outside protection
Note: Preserve® film coverage on the glass surface has a tolerance of +/- .25"
Neat® and Preserve® are trademarks of Cardinal IG.
...
Specialty Glass
The majority of projects utilize clear glass, but occasionally a project requires the use of a specialty glass. Whether it be to conceal the view from the exterior of a building, distort the details of objects through the glass or provide an extra level of safety, we have a variety of specialty glasses that will meet your needs. Our specialty glass options include: Laminated, Tempered, Tinted, Spandrel, Turtle, and Patterned.
Patterned
Pattern 62
Matte Frost
Horizontal/Vertical Reed
Rain
Glue Chip
Tinted
Bronze
Grey
This special glass is produced by bonding a combination of plastic vinyl layers and polyester film between two panes of glass into a single sheet. Sea-Storm® glass looks like ordinary glass, but is designed to pass stringent building requirements in high wind speed areas. It protects like a shield against accidental impact, forced entry, sun damage and unwanted noise. Extensive testing shows that upon impact, broken glass fragments tend to adhere to the durable, bonded plastic vinyl interlayer, reducing the risk of injury and damage.
Laminated Glass Construction with .090 PVB Interlayer.
Sea-Storm® is a trademark of Cardinal IG.
Impact
Features & Benefits
- Storm Barricade: Resists impact from air-borne projectiles and debris without the need for storm panels or shutters. Remains integral even after glass breakage and during high/low pressure 'pumping'.
- Safety Shield: Is tougher to break. If broken, the vinyl interlayer remains in the frame with glass fragments adhering to it, providing a strong barrier against forced entry.
- Solar Screen: Offers a clear glass appearance with enhanced protection against fading of furniture, flooring, artwork and other home furnishing.
- Sound Control: Reduces unwanted outside noise in high traffic areas. Train tracks, airports and heavy highway traffic are less obtrusive.
Lite & Grille Options
There are not only choices in the glass itself, there's also variation in glazing. Here is another opportunity to have your windows and doors made to fit the interior design, décor and style of the room. Additionally, the exterior interacts with the overall architecture and creates fantastic curb appeal. Enhancing windows and doors with lite divisions definitely puts the icing on the cake. Although there are standard lite configurations designated for all products, custom designs are also welcome.
Simulated Divided Lites
Windows and doors may be enhanced with simulated divided lites. Both the interior wood bars and the exterior aluminum bars are sealed to the glass with 3M adhesives and are available in all of our Standard, Feature, Custom, and Spray-On Anodized colors.
Internal Grilles
Mill Finish
Bronze Finish
Simulated divided lites are available in 5/8", 7/8", 1-1/8" and 2" bar widths and are color-matched to the exterior cladding. They may be ordered with mill finish or bronze spacer bars or with no spacer at all.
Exterior Bars - Aluminum
5/8" Bar
7/8" Bar
1-1/8" Bar
2" Bar
Exterior Bars - Vinyl
5/8" Bar
7/8" Bar
1-1/8" Bar
2" Bar
Interior Bars - Profiled
5/8" Bar
7/8" Bar
1-1/8" Bar
2" Bar
Interior Bars - Square
5/8" Bar
7/8" Bar
1-1/8" Bar
Interior Wood Grilles
Interior wood grilles are available in single profile widths of 5/8", 1", and 1-1/4" and a double profile width of 7/8". These can be ordered with or without a perimeter surround. Interior grilles offer the convenience of removal for the cleaning of interior glass surfaces.
With Surround
Without Surround
Single Profile
5/8" Bar
1" Bar
1-1/4" Bar
Double Profile
7/8" Bar
Internal Aluminum Grilles
Another unobstructive manner of lite division is the addition of an internal aluminum grille. Inserted at time of insulated glass fabrication, internal aluminum grilles are 11⁄16" double profile and are available in all eight of our standard clad colors. Two-toned grilles are available in all eight standard colors with white always on the other side.
11/16"" Bar
Standard/Two-Toned Colors
Coffee Bean
Hartford Green
Bronze
Classic Black
Slide Door Grille Patterns
Diamond
Prairie
Hardware Options
Slide Patio
Contempo Handle - Optional
The newest addition to Lincoln's sliding patio door product series is ready for your next project. Contempo hardware series is the perfect fit for modern architecture designs. These handles feature straight clean aesthetics, functional easy-to-grab pulls and 9 popular finishes.
- Attractive finishes to match contemporary interior decor
- Factory predrilled mounting hole locations
- Large pull surface to manage operation of large door panels
- Backplate pairs nicely with 'Dallas' style swing door hardware
- Two-point engagement system locks positively with side jamb keeper
White
Polished Brass
Antique Brass
Oil-Rubbed Brass
Satin Nickel
Polished Chrome
Brushed Chrome
Matte Black
Faux Bronze
Allure - Standard Handle
Secure two-point locking hardware is both functional and attractive. Standard Allure handle sets in White, Sandstone, Adobe or Faux Bronze are painted metal on the interior and exterior. Keyed cylinders are optional.
White
Sandstone
Adobe
Faux Bronze
Signature - Optional Handle
Signature handle sets are available in twelve finishes. If there is more than one door on a project, they may be ordered keyed alike. The latch mechanism is dual point, latching both up and down to resist forced entry by lifting the panel. Finishes can be color coordinated with swing doors. Keyed cylinders are standard.
White
Sandstones
Adobe
Polished Brass
Antique Brass
Oil-Rubbed Brass
Satin Nickel
Antique Nickel
Polished Chrome
Brushed Chrome
Matte Black
Faux Bronze
Footbolt
For additional security, order an optional footbolt and enjoy the comfort of knowing that the Lincoln slider passes a forced-entry test. Our Black or White footbolt is compatible with both the narrow and wide stile sliding door.
Screen Options
Screens allow you to enjoy the fresh air while keeping insects and debris out of your home. Lincoln offers three options.
BetterVue Screen
UltraVue Screen
BetterVue is our standard screen mesh. Made of fiberglass, it has thinner strands and a tighter weave than traditional fiberglass screen providing better visibility, increased light transmittance, greater airflow, improved curb appeal and enhanced protection from small insects (no-see-ums), debris and dust.
UltraVue® offers the most clarity of our screen mesh options. Constructed of fire-retardant charcoal fiberglass mesh, UltraVue® screens are engineered with even thinner strands and a tighter weave than our BetterVue® screen option for increased visibility, light transmittance, airflow and insect protection.
Aluminum is the most widely used metal for screens and is a great option for homes with pets or kids. Metal screens are popular in regions where insects routinely chew holes in fiberglass mesh.
Close-ups
BetterVue®
UltraVue®
Aluminum
Traditional Slide Door
Our standard screen offers a heavy-duty extruded aluminum frame built strong enough for years of use. Screens glide on metal rollers (both top and bottom) and are adjustable.
Replacement Options with
Remodeling any building can have its challenges and Lincoln stands ready to simplify the purchasing decision. Choosing the right product for the application is often the hardest decision of all. We outline steps for a successful replacement /remodel project and smooth the path to an efficiently completed project with the proper product. Click HERE for more information or download our Revitalize brochure

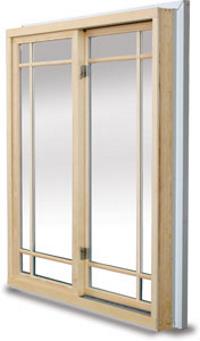

Full-Frame Replacement Patio Doors
There are plenty of reasons to choose a Revitalize full-frame replacement from Lincoln Windows and Patio doors. Our extensive built-to-fit product line is specifically manufactured for your home, home addition, commercial renovation or even a multi-family development. Our many years of manufacturing excellence allows every project to utilize Lincoln's vast window experience, reach completion faster, reduce callbacks and add value. Revitalize Today!
Slide Doors
- Metal Rollers - Adjustable dual tandem ball-bearing rollers slide on stainless steel track
- Footbolt Option - Locks operating panel to sill for added security
- Fiberglass Sill - Thermally efficient sill is extremely durable
- Large Sizes - Slide doors can be configured with a continuous head & sill for max size of 16-0 X 9-0
- Knocked Down (KD) – Doors can ship unassembled for multistory or difficult installs
Configuration Options
One of the best ways to change or improve the look of a home is to alter the window configuration. Our vast offering of window styles allows for configurations from traditional to contemporary and everything in between. The samples shown below are just a handful of what's possible. Whether you want a simple studio window combination or are looking to make a statement by combining standard windows with specialty shapes, we can meet your needs.
Wide Stile
Narrow Stile
3-Wide
4-Wide
2-Wide with Mulled
Sidelite
3-Wide with Single Mulled Transom
4-Wide with Multiple Mulled Transoms
4-Wide with Trapezoids, Triangles and Rectangles
4-Wide with Hexagon and Trapezoinds
4-Wide with Mulled Extended Leg Half Round and Extended Leg Quarter Rounds
2-Wide with Sidelite and Mulled Trapezoids
How To Clean Windows With Invisible Grille
Source: https://lincolnwindows.com/SlidePatioDoor
Posted by: steelplam1994.blogspot.com
0 Response to "How To Clean Windows With Invisible Grille"
Post a Comment
